Home /Products/BLDC Electric Motor/[MTM] 110VAC 150W drip-proof 3000RPM IE4 brushless motor made in Taiwan brushless motor bldc motor

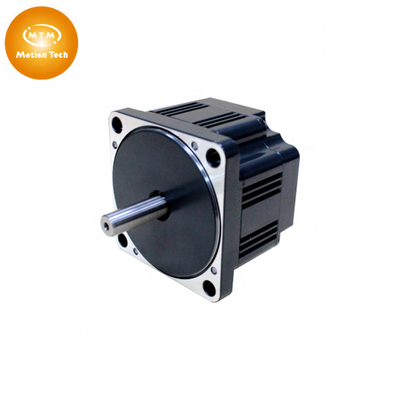

[MTM] 110VAC 150W drip-proof 3000RPM IE4 brushless motor made in Taiwan brushless motor bldc motor

1 Piece
MOQ
$105.00(1 - 99 Pieces) $77.00(>=100 Pieces)
Price
[MTM] 110VAC 150W drip-proof 3000RPM IE4 brushless motor made in Taiwan brushless motor bldc motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: BL90SB0D8R00130175
Usage: Home Appliance, SMART HOME
Type: Brushless Motor
Torque: 0.48N-m
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Drip-proof
Speed(RPM): 3000RPM
Continuous Current(A): 1.4A
Efficiency: IE 4
Diameter: 90
IP Degree: IP54
Rated Torque: 0.48N-m
With Brake: According To Customer's Demands
With Gearbox: According To Customer's Demands
With Transaxle: According To Customer's Demands
Certification: Ce, RoHS
Basic Infomation
Certification: ce, RoHS
Model Number: BL90SB0D8R00130175
Payment & Shipping Terms
Packaging Details: Six Motors in a Carton.
Product Description
Products Description
Model Name
Voltage
Motor Output
Rated Speed
Rated Torque
Rated Current
BL90X
24V / 48V / 100V / 110V / 220V
100W
3000RPM
0.32N-m
5.7A
BL90S
24V / 48V / 100V / 110V / 220V
150W
3000RPM
0.48N-m
8.0A
BL90N
24V / 48V / 100V / 110V / 220V
200W
3000RPM
0.64N-m
10.2A
BL90M
24V / 48V / 100V / 110V / 220V
350W
3000RPM
1.12N-m
16A
BL90L
24V / 48V / 100V / 110V / 220V
500W
3000RPM
1.6N-m
12.8A
Product Paramenters
Specification
Product name
Brushless motor series-BL90
MOQ
1 piece
Country of origin
Taiwan
Port
Keelung
Certifications
About BLDC Series
From 15W to 9000W
MTM have a complete BLDC product line from 15w to 9000w, from 100rpm to 8000rpm, from 12VDC to 96VDC, from 100VAC to 220VAC.
Standard BL42 products: 15W~30W
Standard BL60 products: 40W~120W
Standard BL90 products: 100W~500W
Standard BL104 products: 400W~1000W
Standard BL130 products: 1000W~2000W
Standard BL180 products: 2000W~9000W
Optional Power off brake: 2N-m~10N-m
Gearbox motor is available from 40W~7000W
Model
Rated Power(W)
Rated Voltage(V)
Rated Torque(N-m)
Rated Speed(RPM)
Brake
With Driver
No Driver
BL104L
1000
220VAC
3.2
3000
x
BL104M
750
220VAC
2.38
3000
x
BL104S
400
220VAC
1.27
3000
x
BL90L
500
220VAC
1.6
3000
x
500
110VAC
1.6
3000
x
BL90M
350
220VAC
1.1
3000
x
350
110VAC
1.1
3000
x
BL90N
200
220VAC
0.64
3000
x
200
110VAC
0.64
3000
x
BL90S
150
220VAC
0.48
3000
x
150
110VAC
0.48
3000
x
BL60L
120
220VAC
0.39
3000
x
120
110VAC
0.39
3000
x
BL60M
80
220VAC
0.26
3000
x
80
110VAC
0.26
3000
x
BL60S
40
220VAC
0.13
3000
x
40
110VAC
0.13
3000
x
Applications

Brush motor is our root, Servo motor and brushless motor is our future.

The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.
Packing & Delivery
Company Profile
About MTM
ISO 9001, ISO 14001 AUTHORIZED.
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over the world. We devote to manufacture PMDC motors and BLDC motors since 2002.The main products of MTM is power module which included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to create a product with quality, efficiency and reliability.
