IP30 16mm Low Noise Micro High Torque 24v DC Coreless Motor

800.0 Pieces
MOQ
IP30 16mm Low Noise Micro High Torque 24v DC Coreless Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: 1630RCG
Usage: FAN, Home Appliance, Medical, Health Care, Idustrial Automation, Toys, Electric Tool, Medical, Health Care, Idustrial Automation, Toys
Type: Micro Motor
Torque: 5.4mNm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: IP30
Speed(RPM): 9500rpm
Continuous Current(A): 15mA
Efficiency: 72%
Function: Driving
Speed: 9500rpm
Power: DC
Shape: Tubular
Phase: 5
Motor Type: PMDC Brushed Motor
Diameter: 16mm
Size: 16*30 Mm
Shaft Diameter: 1.5mm
Basic Infomation
Model Number: 1630RCG
Payment & Shipping Terms
Packaging Details: carton box
Supply Ability: 200000 Piece/Pieces per Month
Product Description

16mm  low noise high torque 24v micro DC coreless motor

 CONSTAR MICROMOTOR
PRECISION DC CORELESS MOTOR BRUSHLESS DC MOTOR SERVO MOTOR
GEARMOTOR STEP MOTOR MINI CORELESS MOTOR

 1. Applications:   Precision driving field in medical,health care and industrial automation.



2. Operating Environment:  -20~+85°C;15~90%RH



3. Characteristics:



1 Voltage V 24.0
2 Rotor Resistance Ω 42.5
3 No-load  speed rpm 9500
4 No-load current mA 15
5 Stall  torque mNm 13.3
6 Stall  current mA 565
7 Nominal torque mNm 5.4
8 Nominal speed rpm 5460
9 Nominal current mA 250



4. Options:   Lead wires length, shaft length, special coils, gearheads, encoder , bearing type



5.Outline Drawing:

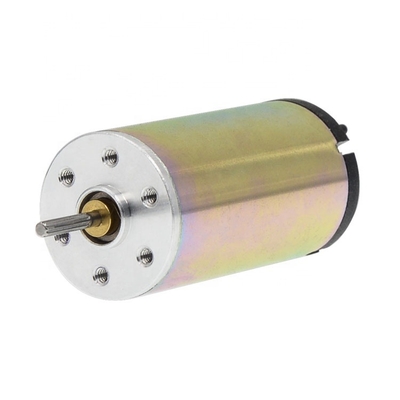

6.Photo:





                       16mm  low noise high torque 24v micro DC coreless motor
