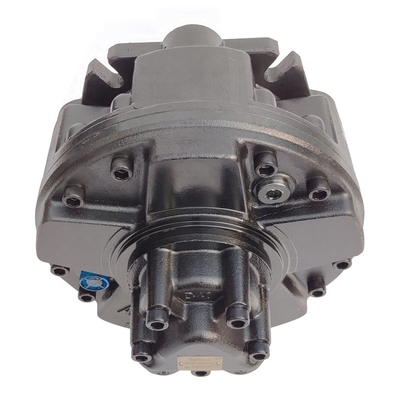

cement & Stone crusher GM3 350 hydraulic piston motor 425 500 600 700 800 900 1000 low speed

1 piece
MOQ
$670.00(1 - 19 pieces) $635.00(20 - 59 pieces) $605.00(>=60 pieces)
Price
cement & Stone crusher GM3 350 hydraulic piston motor 425 500 600 700 800 900 1000 low speed
Features Gallery Product Description Request A Quote
Features
Specifications
Pressure: High Pressure
Structure: Hydraulic
Weight: 87
Power: 25000
Dimension(L*W*H): 50*50*55cm
Warranty: 1 Year, 1 Year
Showroom Location: None
Motor Type: Piston Motor
Displacement: 1000cm³, 350/425/500/600/700/800/900/1000
Maximum Flow Rate: 340L/min
Product Name: GM3 Radial Piston Hydraulic Motor
Shaft Type: SPLINED/TAPERED/CYLINDRICAL/INTERNAL SPLINE
Oil Port: D31/D524/D316/D90/D47/D12010/D36J More
Flange Type: Dia 265 F7 Pilot Dia 310mm
Speed Range: 3-1000rpm
Max.pressure: 350Mpa
Peak Power: 80kW
Application: Cement & Stone Crusher
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 2000 Piece/Pieces per Month
Product Description
PRODUCTS DESCRIPTION
GM RADIAL PISTON HYDRAULIC MOTOR
GM series hydraulic motor is a kind of radial piston type in our company hydraulic motor range, which based on years practical experience and designed and improved the original products on the basis of ltalian technologies. GM hydraulic motor mainly has the follwing characteristics: 1. As the piston and the tilt cylinder have no side force ,the piston bottom is designed to be static pressure balance. The torsional force is transferring between the piston and the crankshaft through oiling bearing, so the friction loss during the transferring process of force is reduced. Therefore, GM series hydraulic motor has such features as: very high mechanical efficiency and comparatively high startup torque(mechanical efficiency of over 0.92 during startup). 2. The plane distributor (patented technology)is simple and reliable with perfect seal performance and almost no leakage. The plastic piston ring is used to seal between the piston and the tilt cylinder, so it has very high volumetric efficiency (can be as high as 0.98). 3. As the structure of this product has reduced friction loss and enhanced the seal performance, the product has perfect stability at low speed. It can stably run at 1r/min working condition and has big speed regulation range. 4. As the piston is jointed closely with bearing bushing without any clearance, this series of hydraulic motor can run at pump working condition. 5. This series of hydraulic motor has high pressure, light weight, small bulk and high spesific power. 5. As this series hydraulic motor has simple structure, reasonable design and adopts bearing with big load ability, it can work reliably and has long life and low noise; the transmission shaft allows endure radial load and the rotational direction is reversible.
PARAMETER
MODEL
DISPLACEMENT(ml/rev.)
RATED PRESSURE(Mpa)
MAX.POWER(KW)
WEIGHT(KGS)
GM05
40~200
25
20
22
GM1
100~320
25
25
31
GM2
200~630
25
59
51
GM3
350~1000
25
80
87
GM4
400~1300
25
100
120
GM5A
525~2000
25
120
175
GM6
1700~3000
25
170
275
GM7
2000~4700
25
250
300
OPTIONS
RECOMMEND PRODUCTS
APPLICATION
COMPANY PROFILE
NINGBO MINGYE INTERNATIONAL TRADE CO.,LTD
"MINGYE" is professional in hydraulic field,running business for different hydraulic motors and pumps with spares:
Orbit motor(OML/OMM/OMP/OMR/OMS/OMT/OMV),
Radial piston motor (IAM/GM/HMB/CA/MS series);
Vane Pump(PV2R/VQ/SQP/T6 T7 series),
piston Pump(A2FO/A4VSO/A4VG/A10VSO/A11VO series).

Those items are made in China,replacing original brand perfectly,and now widely used in plastic injection machinery, fishing
machinery, mining equipment, oil-drilling equipment,lift trucks, excavator,wheel loaders, harvesting machinery and tractors.etc.
MINGYE has own advantage,competitive price with reliable quality,prompt feedback,work efficiently. Hope to be a long time partner
once we start business with your esteemed company.
PACKAGING DETAILS AND TRANSPORTATION
CUSTOMER COMMENTS
FAQ
1)Are you manufacturer?
Yes,We have been manufacturing hydraulic motormore than 15 years.

2)How about MOQ?
1 PC.

3)Payment terms:
TT,paypal,Western union,LC...
Your money is safe if we do business.

4)Delivery time:
Standard items in stock;mass orders within 10 days.

5)Shipment:
International express(DHL,Fedex,TNT...),Air and marine transportation are available.

6)Quality Guarantee:
Warranty 12 months after shipment for complete assembly.
